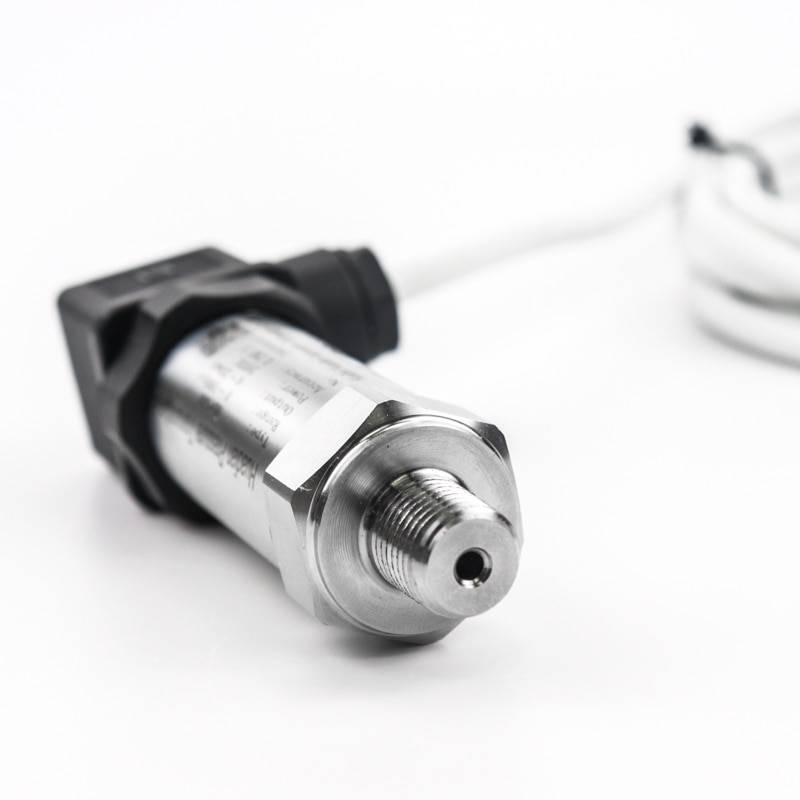

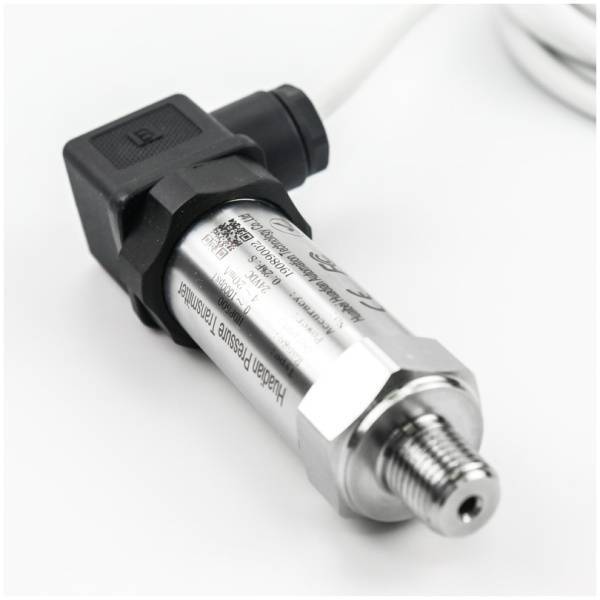

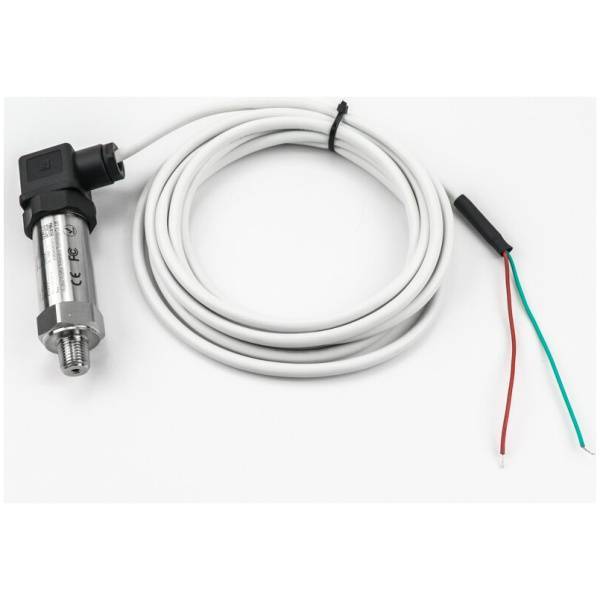

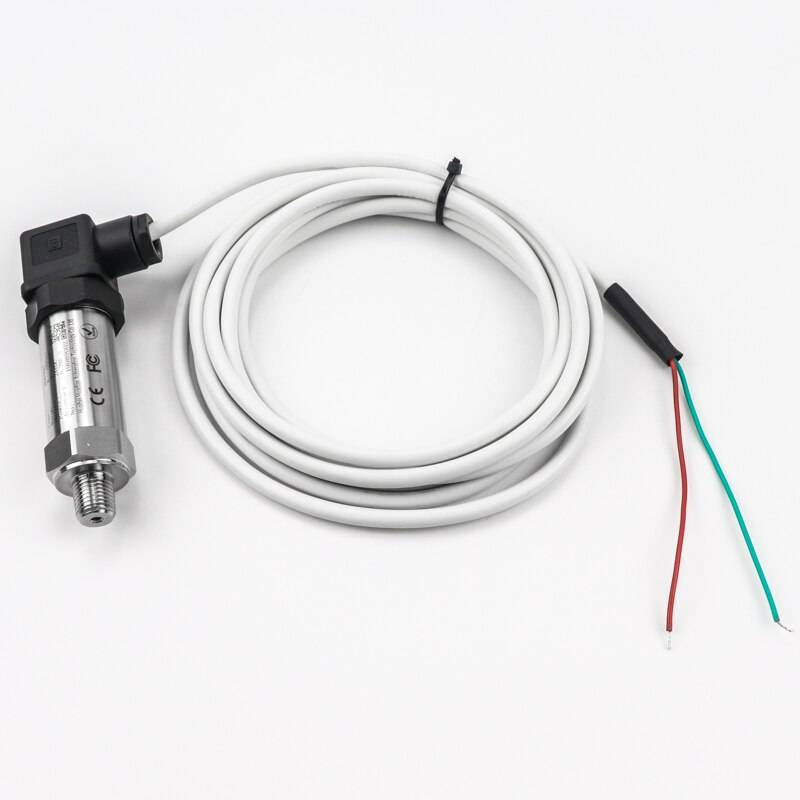

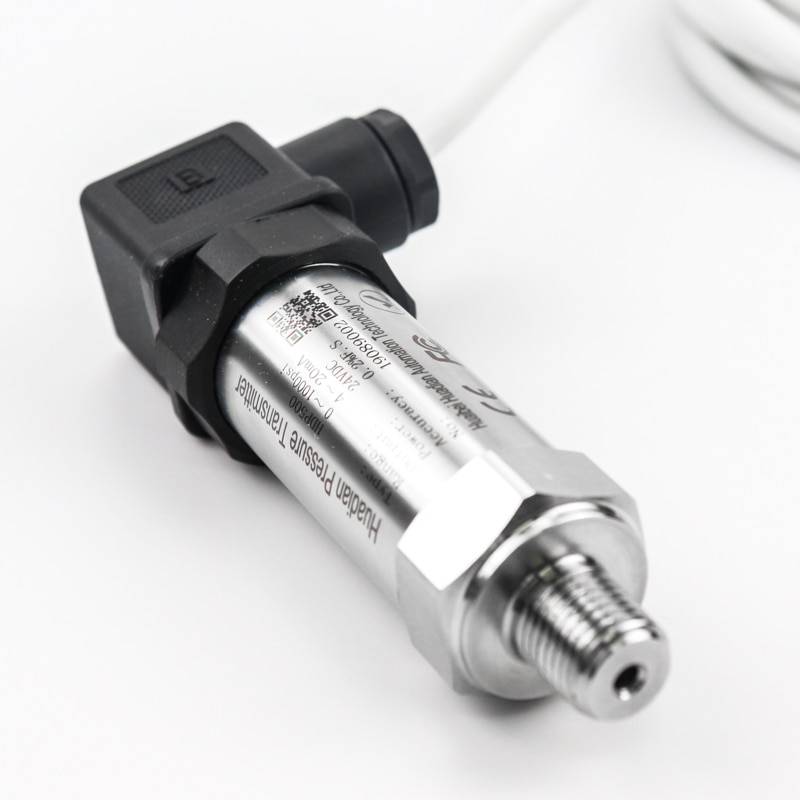

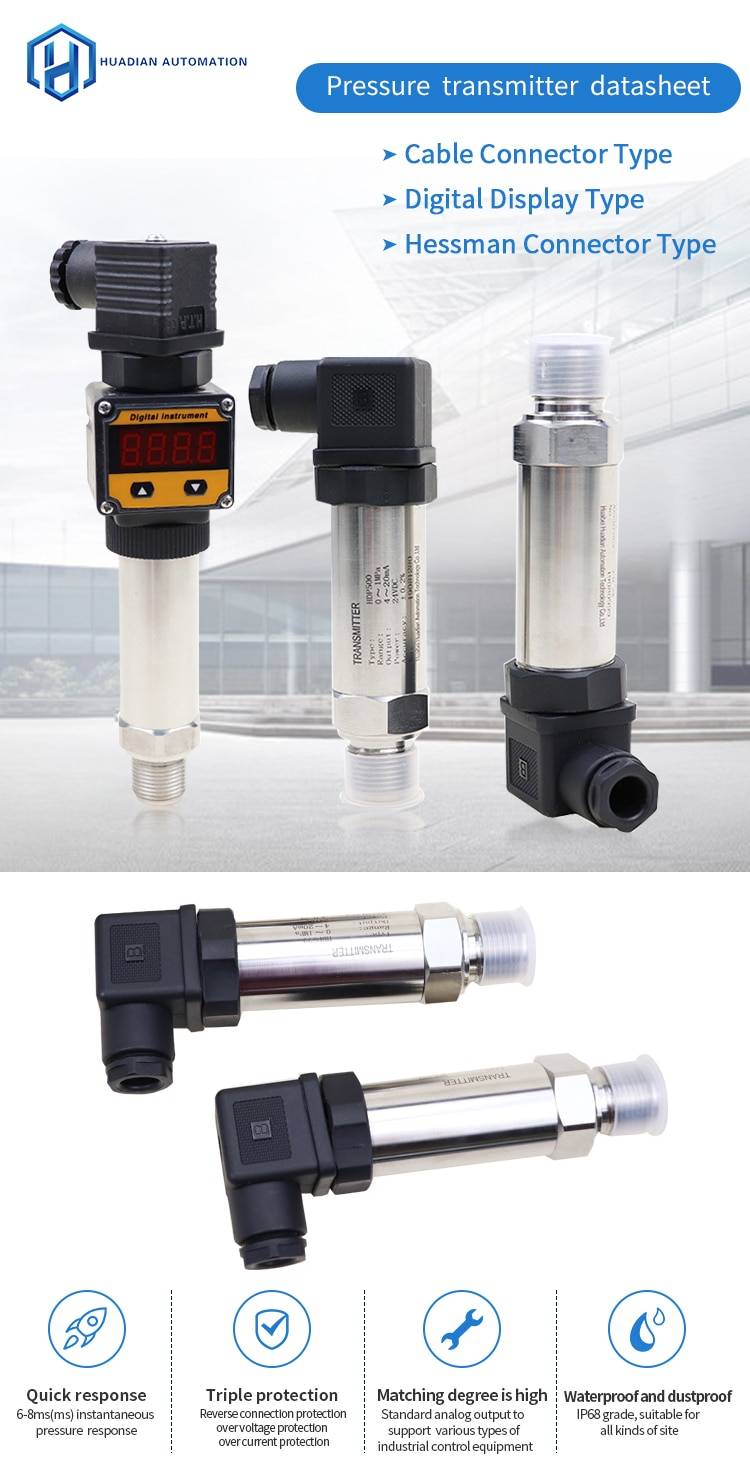

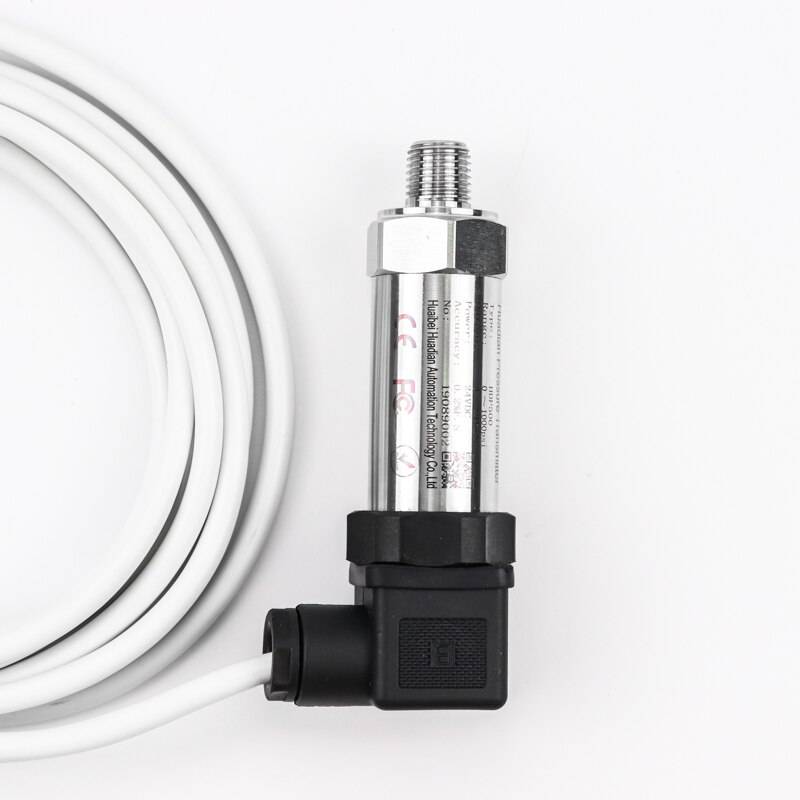

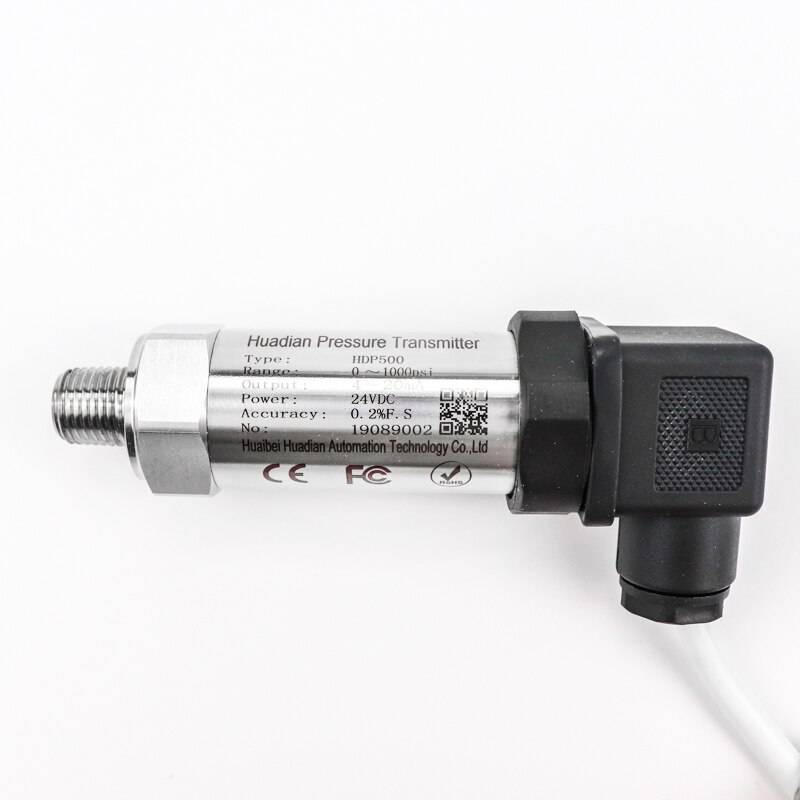

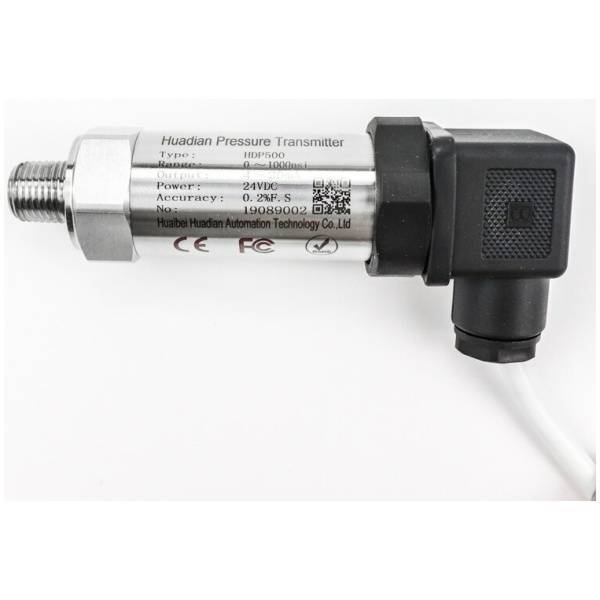

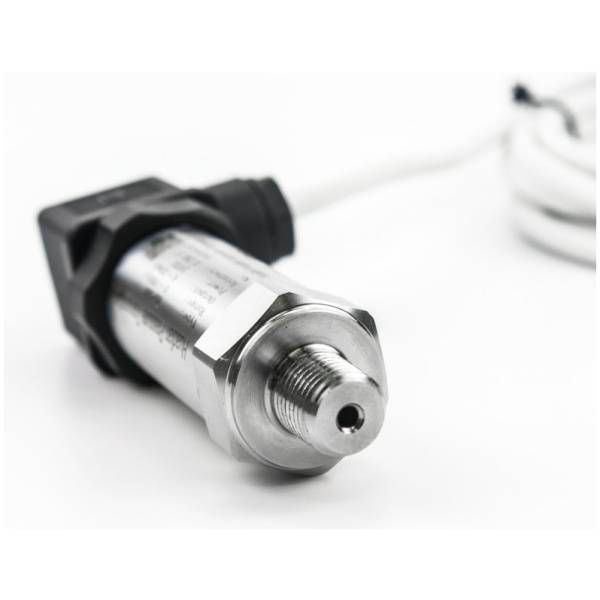

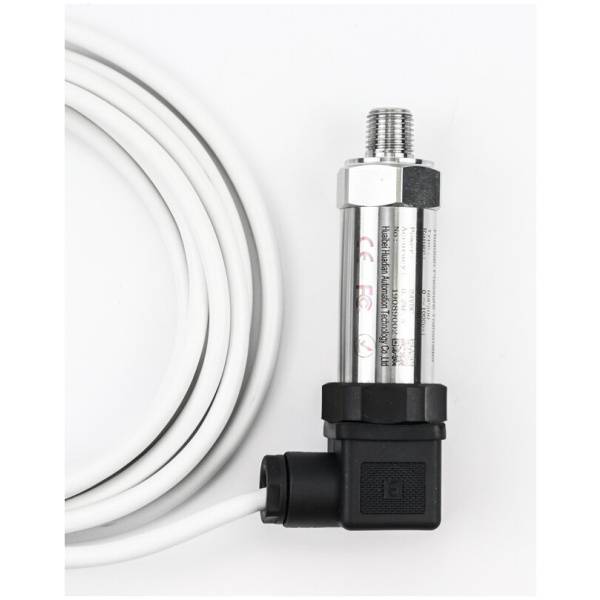

oil pressure sensor 4-20mA Pressure Transmitter G1/2 Hirschmann connector

$10.00$191.00

Warehouse East
0-0.16Mpa0-0.1Mpa0-0.25Mpa0-0.4Mpa0-0.6Mpa0-1.6Mpa0-100Mpa0-10Mpa0-10v extra cost0-16Mpa0-1Mpa0-2.5Mpa0-20Mpa0-25Mpa0-30Mpa0-4Mpa0-50Mpa0-6MpaDHL shippingrs485 extra cost
Clear
SKU: 4000781009648 Categories: ,

Description

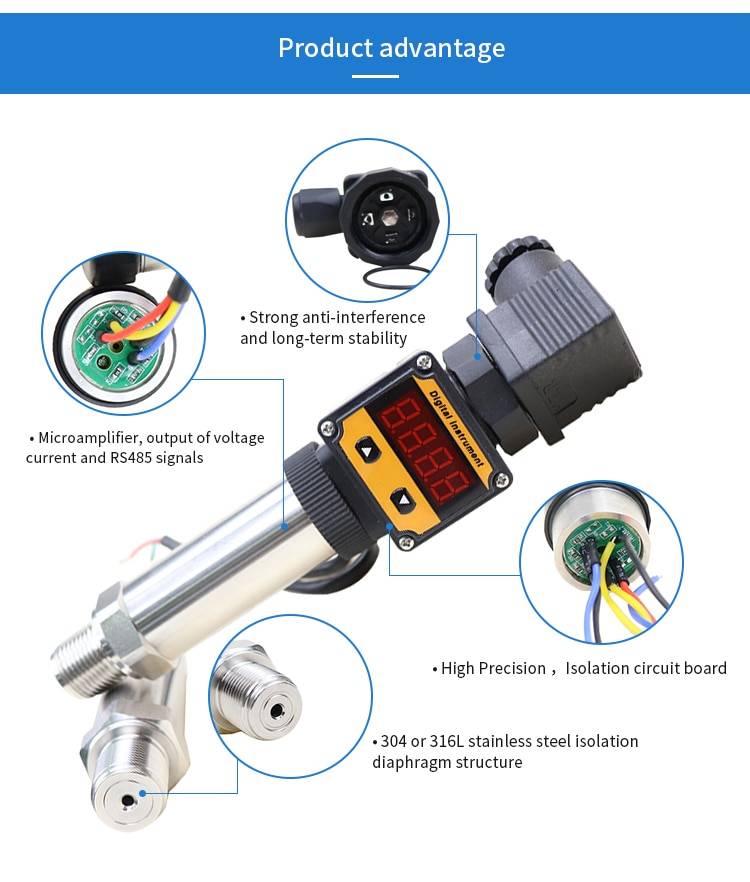

HDP500 series pressure transmitter pressure sensitive core adopts high performance silicon piezoresistive pressure filling core. The internal ASIC converts the sensor millivolt signal into standard voltage, current or frequency signal, which can be directly connected with computer interface card, control instrument, intelligent instrument or PLC.
Current output mode can be used for distance transmission. It has small volume, light weight, all stainless steel sealing structure and can work in corrosive environment.
The product is easy to install and has high anti-vibration and anti-impact performance.It is widely used in process control, aviation, aerospace, automobile, medical equipment, HVAC and other fields…

Technical Parameters

Medium
water, oil , gases
Model
HDP-500
Measuring range
-0.1…0 -100Mpa
Accuracy
0.25%FS
Output
4-20mA
Power supply
24V±20%
Connection
M20*1.5
Ambient temperature
-10-80C
Lead connection
Hirschman
Display
Local LCD display
Material
SS304
Protection grade
IP65

Related Product

oil pressure sensor 4-20mA Pressure Transmitter G1/2 Hirschmann connector

oil pressure sensor 4-20mA Pressure Transmitter G1/2 Hirschmann connector

Product Details

oil pressure sensor 4-20mA Pressure Transmitter G1/2 Hirschmann connectoroil pressure sensor 4-20mA Pressure Transmitter G1/2 Hirschmann connectoroil pressure sensor 4-20mA Pressure Transmitter G1/2 Hirschmann connector

oil pressure sensor 4-20mA Pressure Transmitter G1/2 Hirschmann connector

Additional information

Brand Name

NoEnName_Null

Max Measuring Range

400 Bar & Above

Model Number

HDP500 small pressure transmitter

Product name

4-20mA Pressure Transmitter

Medium

water, oil , gases etc

Measuring range

-0.1…0 -100Mpa

Output

4-20mA, 1-5V, 0-10V, RS485 etc

Power supply

24V±20%

Overload

120%FS, 200%FS

Ambient temperature

-10-80C

Medium temperature

-10-70C

Connection

M20*1.5

Lead connection

Hirschman

Material

SS304, SS316

Protection grade

IP65

Display

Local LCD display
