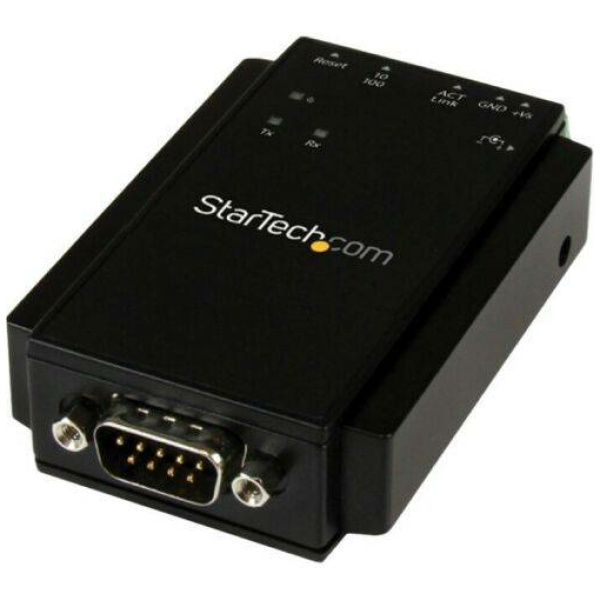

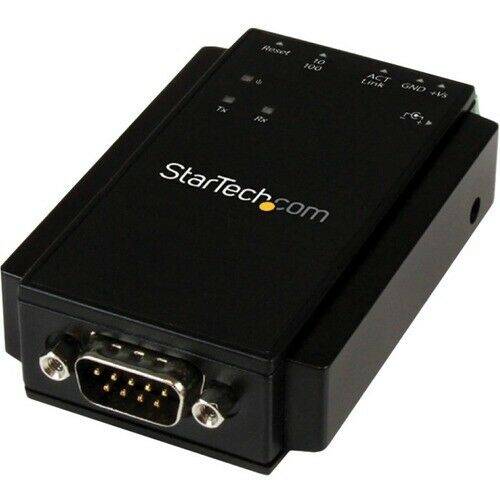

Startech 1 Port Serial-to-IP Ethernet Device Server – DIN Rail Mountable
This 1-Port Serial Device Server lets you remotely access and manage an RS232 serial device over a local area network (LAN), for a simple and cost-effective serial-over-IP control solution. For more control options, the device server is compatible with the free, StarTech Serial Device Application Software NETRSAPP. When coupled with the NETRS232, this handy application for iOS, Android, and Chrome Browser lets you build a custom serial control interface that’s tailored to your specific application. Flexible power and mounting options For installation flexibility across a variety of environments, you can power the device server using the provided 12V DC power adapter, or using the integrated 10~30V DC terminal block. Plus, the device server is DIN rail mountable for out-of-the-way installations. Protects your investment To help ensure reliable performance and prevent possible damage, the serial device server offers 15KV ESD (Electrostatic Discharge) protection, so you can rest assured that the device server won’t become damaged due to externally generated ESD. Customizable and wide compatibility This highly-customizable device server is easy to configure to suit your application. For easy setup, Windows users can use the provided Virtual COM port software, or the versatile web-based interface. The RS232 device server supports Telnet (an operating system independent communication protocol), so it can be integrated into mixed OS environments (Windows, Mac, Linux). Plus, it supports VCOM, TCP Server/Client, UDP, HTTP, DHCP, ICMP(PING), Static IP, and ARP protocols. Download the application software and manage your serial devices with ease Download the StarTech serial control software from the Apple App Store, the Google Play™ Store, or the Chrome Web Store. The NETRS232 is backed by a StarTech 2-year warranty and free lifetime technical support. More from the Manufacturer:
Manufacturer
StarTech
Manufacturer Part Number
NETRS232
Brand Name
StarTech
Product Name
1-Port Serial-to-IP Ethernet Device Server – RS232 – DIN Rail Mountable
Product Type
Device Server
Media & Performance
Media Type Supported
Twisted Pair
Wireless Specifications
Wireless LAN
No
ISM Band
No
UNII Band
No
Network & Communication
Ethernet Technology
Fast Ethernet
Network Standard
10/100Base-TX
Interfaces/Ports
Network (RJ-45)
Yes
Phone Line (RJ-11)
No
Network (RJ-11)
No
USB
No
Serial Port
Yes
Parallel Port
No
Centronics Port
No
PoE (RJ-45) Port
No
Number of Network (RJ-45) Ports
1
Number of Serial Ports
1
Power Description
Input Voltage
12 V DC
Physical Characteristics
Color
Black
Form Factor
Rail-mountable
Height
0.9″
Width
2.2″
Depth
3.7″
Weight (Approximate)
2.40 Oz
Miscellaneous
Package Contents
1-Port Serial-to-IP Ethernet Device Server – RS232 – DIN Rail Mountable 1 x DIN Rail Kit 1 x Terminal Block 1 x Universal Power Adapter (NA/UK/EU) 1 x Software CD 1 x Instruction Manual
Compatibility
Windows® 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016 Linux Linux: The included software does not support Linux to emulate a local COM port Linux users would need to use Telnet
Certifications & Standards
CEFCCIEEE Standards:802.3802.3u
Environmentally Friendly
Yes
Environmental Certification
RoHS, REACH, WEEE
TAA Compliant
Yes
Warranty
Limited Warranty
2 Year
