0-5V 4-20mA RS485 Water Level Measuring Measurement Sensor 0-5m Water Liquid Fuel Level Transducer

$69.50$210.00

Warehouse East

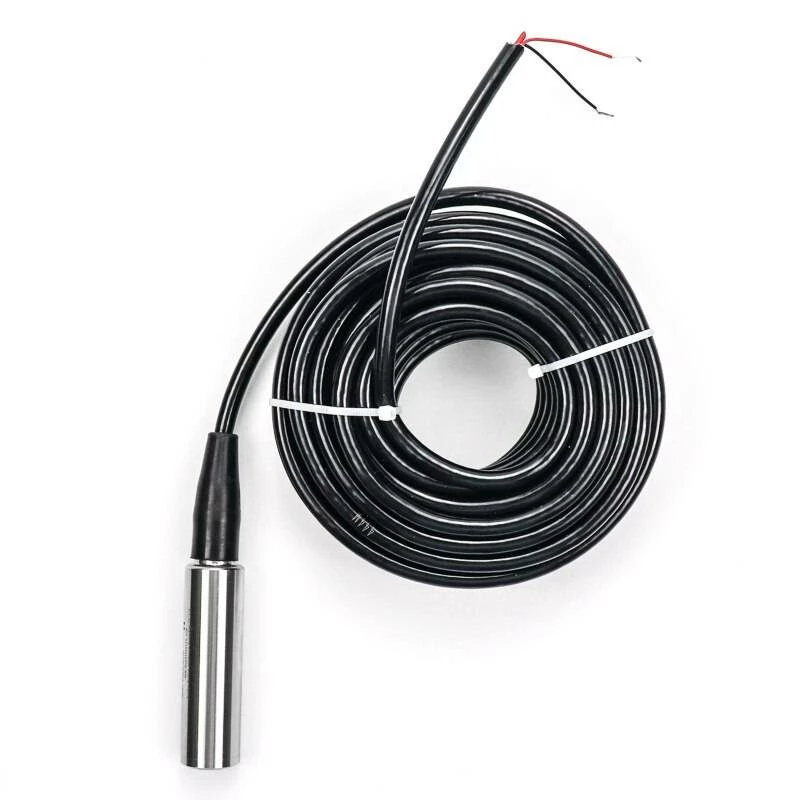

15m high accuracy24V Power RS485 20moutput 0-10Voutput 4-20maoutput rs485with 10m cablewith 20m cablewith 50m cablewith 5m cable
Clear
SKU: 4000081664333 Categories: ,

Description

Realted Product

0-5V 4-20mA RS485 Water Level Measuring Measurement Sensor 0-5m Water Liquid Fuel Level Transducer

Product Description

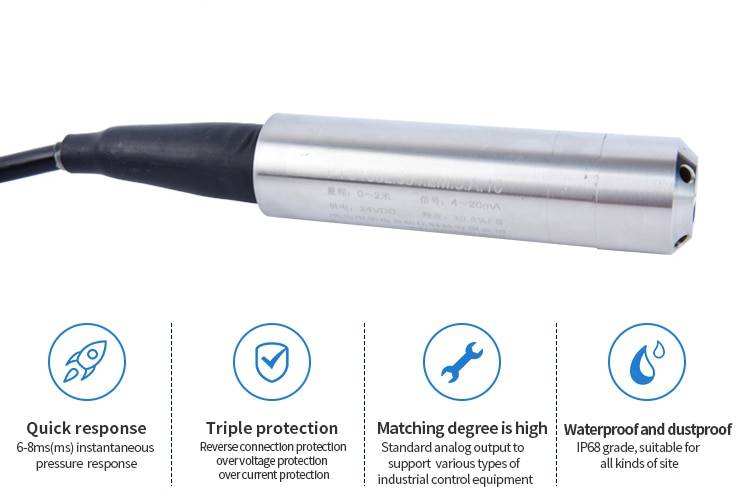

HDL300 series water level transmitter pressure sensitive core adopts high performance silicon piezoresistive pressure filling core. The internal ASIC converts the sensor millivolt signal into standard voltage, current or frequency signal, which can be directly connected with computer interface card, control instrument, intelligent instrument or PLC. Current output mode can be used for distance transmission. It has small volume, light weight, all stainless steel sealing structure and can work in corrosive environment. The product is easy to install and has high anti-vibration and anti-impact performance. It is widely used in process control, aviation, aerospace, automobile, medical equipment, HVAC and other fields.

0-5V 4-20mA RS485 Water Level Measuring Measurement Sensor 0-5m Water Liquid Fuel Level Transducer0-5V 4-20mA RS485 Water Level Measuring Measurement Sensor 0-5m Water Liquid Fuel Level Transducer0-5V 4-20mA RS485 Water Level Measuring Measurement Sensor 0-5m Water Liquid Fuel Level Transducer0-5V 4-20mA RS485 Water Level Measuring Measurement Sensor 0-5m Water Liquid Fuel Level Transducer0-5V 4-20mA RS485 Water Level Measuring Measurement Sensor 0-5m Water Liquid Fuel Level Transducer

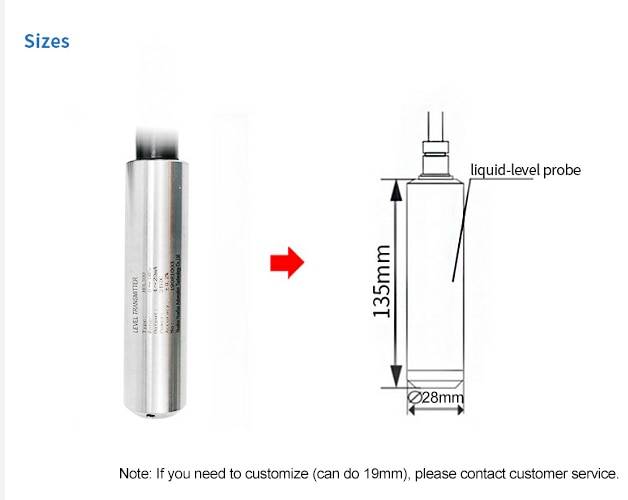

Product details

0-5V 4-20mA RS485 Water Level Measuring Measurement Sensor 0-5m Water Liquid Fuel Level Transducer0-5V 4-20mA RS485 Water Level Measuring Measurement Sensor 0-5m Water Liquid Fuel Level Transducer

Our services

1.We guarantee you the lower pricing from us compared with your any competitive prices from others in volume.

2.We can guarantee you any quality issue from us will be refund you immediately or replace with new & qualified products.

3.OEM, Accept lower quantity trial order

4.Fast delivery. 24 hours With Discount Courier, Air shipment

5.Contains a variety of industrial control products such as signal isolators, pressure and liquid level sensors, temperature, current, voltage, frequency and other transmitters.

All products are in stock (except for special customization).

6.We can support you 24Hours online service via Alibaba, email, skype, what’sapp, facebook etc.

7.Long term warranty. Pressure and level transmitters are 2 years. The others in our shop are with 5 years warranty!!

Company information

0-5V 4-20mA RS485 Water Level Measuring Measurement Sensor 0-5m Water Liquid Fuel Level Transducer0-5V 4-20mA RS485 Water Level Measuring Measurement Sensor 0-5m Water Liquid Fuel Level Transducer

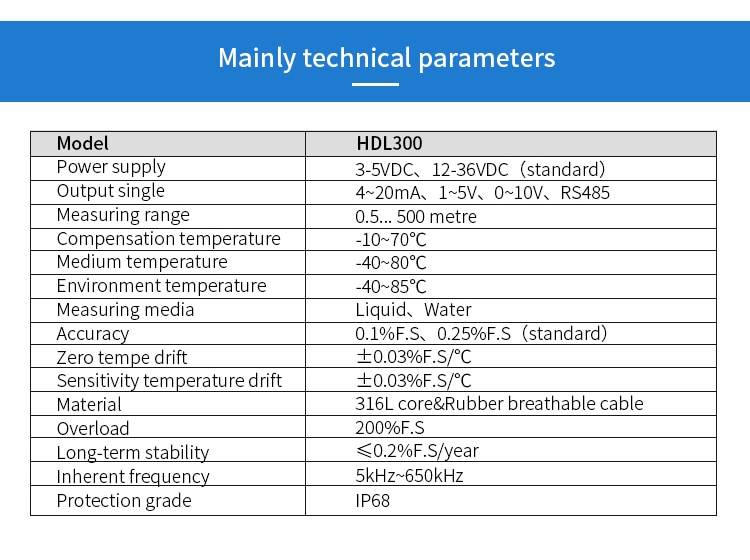

Additional information

Brand Name

NoEnName_Null

Model Number

HDL300

Certificate

ISO9001 CE RoHS FCC SGS

Product name

liquid level sensor

Measuring medium

Liquid,Water,Oil,Gas

Output signal

4~20mA,1~5V,0~10V,RS485

Power supply

5VDC,12-36VDC(standard)

Medium temperature

-40~80℃

Accuracy

0.1%F.S,0.25%F.S(standard)

Zero tempe drift

±0.03%F.S/℃

Sensitivity temperature drift

±0.03%F.S/℃

material

316L core&Rubber breathable cable

Overload

200%F.S

Long-term stability

≤0.2%F.S/year

Inherent frequency

5kHz~650kHz

Warranty

2years
